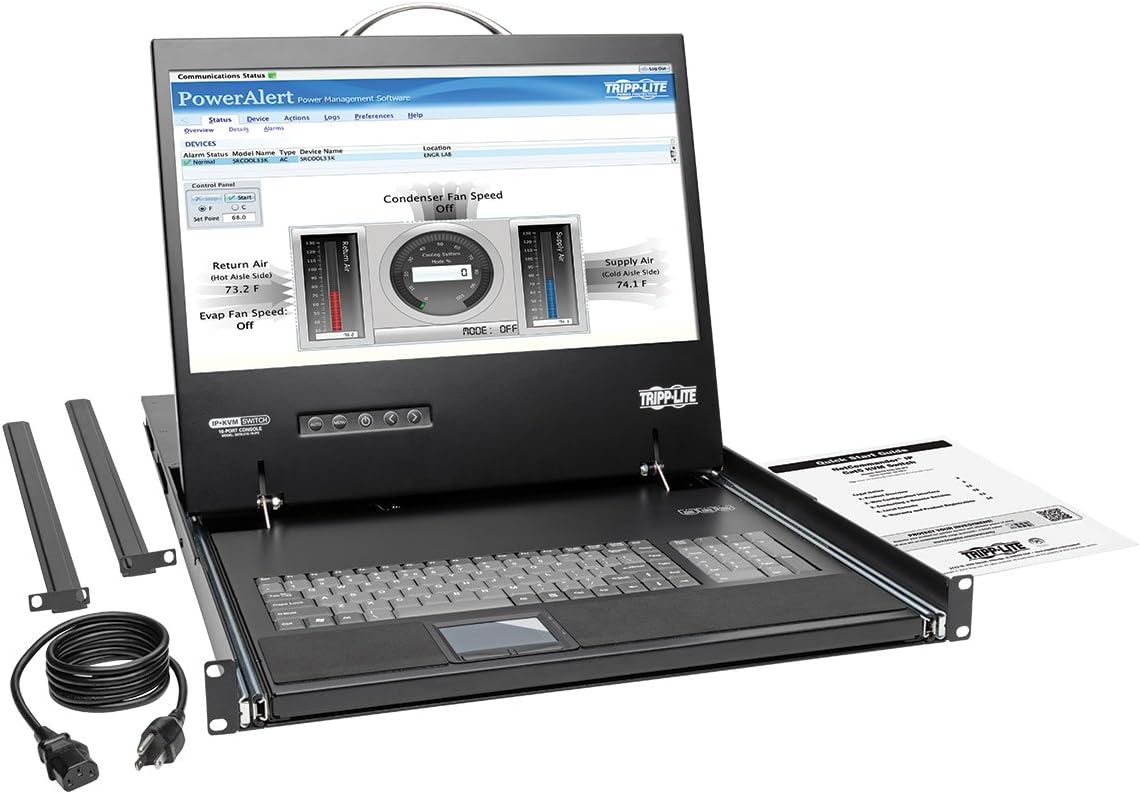

Tripp Lite 16-Port 1U Rack Console IP KVM Switch 2+1 Users w/ 19in. LCD Screen Rack-Mount (B070-016-19-IP2)
Product details
| Management number | 216078534 | Release Date | 2026/04/19 | List Price | $1,118.56 | Model Number | 216078534 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tripp Lite's B070-016-19-IP2 Net Commander 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser. Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access. The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free Net Commander-AXS management software is available to access and control your Tripp Lite Net Commander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column. 1-Year Limited Warrant.
- Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad; Mounts in 1U of space in EIA-standard 19 in. rack
- Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
- Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
- Up to 3 users (1 local, 2 remote) can sign in simultaneously
- 1-Year Limited Warranty
| UPC | 037332177315 |
|---|---|
| Color | Black |
| Model | B070-016-19-IP2 |
| Terminal | Screw |
| Brand Name | TRIPP LITE |
| Unit Count | 1 Count |
| Item Weight | 28.5 Pounds |
| Switch Type | Kvm Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | TRIPP LITE |
| Actuator Type | Hinge Lever |
| Material Type | Alloy Steel |
| Mounting Type | Rack Mount |
| Connector Type | Usb |
| Control Method | Remote |
| Item Type Name | TRIPP LITE 16 Port 1U Console IP KVM Switch 2+1 Users with 19" LCD Screen Rack Mount (B070-016-19-IP2) |
| Operation Mode | Off |
| Item Dimensions | 27.26 x 18.79 x 1.71 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Specification Met | Eia |
| Included Components | B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch^C13 to NEMA 5-15P power cord, 6 ft.^Rack-mounting hardware^Quick Start Guide |
| Number of Positions | 16 |
| Warranty Description | 1-Year Limited Warranty |
| Connectivity Protocol | Wi-Fi |
| International Protection Rating | IP67 |
| Global Trade Identification Number | 00037332177315 |
